ECHOTROL® architectural techfoam
ECHOTROL® TECHFOAM provide maximum sound absorption for a wide range of applications. Available in both standard and custom sizes, these baffles and panels can be hung in a variety of orientations and patterns to provide exceptional performance and visual interest. The foam used to manufacture ECHOTROL® TECHFOAM also has advantages such as being lightweight, easy to install, and providing comprehensive sound absorption, even at very high frequencies.
Echotrol® TechFoam Architectural: The Pinnacle of Acoustic Design
In the realm of acoustic solutions, Echotrol® TechFoam Architectural emerges as a leader. These panels and baffles are meticulously crafted to offer both sound control and design versatility.
Key Features of Echotrol® Architectural TechFoam:
Superior Sound Absorption: With impressive NRC ratings, our foam ensures an optimal sound environment, even at very high frequencies.
Modern Design Options: From round cylindrical baffles to wave or flat panels, Echotrol® TechFoam offers a range of design possibilities to complement any interior.
Lightweight & Easy Installation: The foam's lightweight nature ensures a hassle-free installation process, making it a favourite among architects and designers.
Customizable Aesthetics: Available in natural white or light grey, with custom factory painting options, these panels can be tailored to match any design vision.
Echotrol® TechFoam Architectural is not just about sound control; it's a design statement. Elevate your interiors with a solution that perfectly marries sound control and modern aesthetics.
-
Wall or Ceiling
Different mounting hardware will be used depending on the installation location.
-
Education Sector: Libraries, Learning Commons, Break Out Rooms, Etc.
Recreation Sector: Pools, Fitness Studios, Etc.
Office/Workplace Sector: Offices, Boardrooms, Lunch Rooms, Meeting Rooms, Open Office Areas, Etc.
Entertainment Sector: Theatres, Movie Theatres, Performance Spaces, Community Halls, Bars & Restaurants, Etc.
Places of Worship: Churches, Mosques, Retreat Centres, Synagogues, Fellowship Halls, Etc.
DOWNLOADS:
Brochure
Specification:
Panels
Specification:
Round Baffles
Acoustical Performance
NRC RATING
NOISE REDUCTION COEFFICENT
Noise Reduction Coefficient (NRC) is calculated by averaging the sound absorption coefficients of a material at four frequencies (250 Hz, 500 Hz, 1000 Hz, and 2000 Hz) as measured in a reverberation room according to ASTM C423 standards.
Round Baffles use type J mounting which is calculated using the total surface area of baffles.
|
Frequency (Hz)
|
|||||||||
| Mounting | 125 |
250 |
500 |
1000 |
2000 |
4000 |
NRC |
||
| 1.5" |
38mm | Type A | 0.17 |
0.28 |
0.84 |
0.99 |
1.03 |
1.04 |
0.80 |
| 2" | 50mm | Type A | 0.23 |
0.48 |
1.08 |
1.19 |
1.16 |
1.11 |
1.00 |
| 3" |
76mm |
Type A | 0.45 |
0.87 |
1.26 |
1.07 |
1.06 |
1.10 |
1.00 |
| Round
Baffles |
Type J | 0.09 |
0.25 |
0.87 |
1.16 |
1.18 |
1.08 |
0.85 |
|
Colour Options
Standard Colours: Natural White or Light Grey
Custom Factory Painting May be Available.
fire rating/flammability
|
ASTM E-84 |
Class 1 or A |
Options

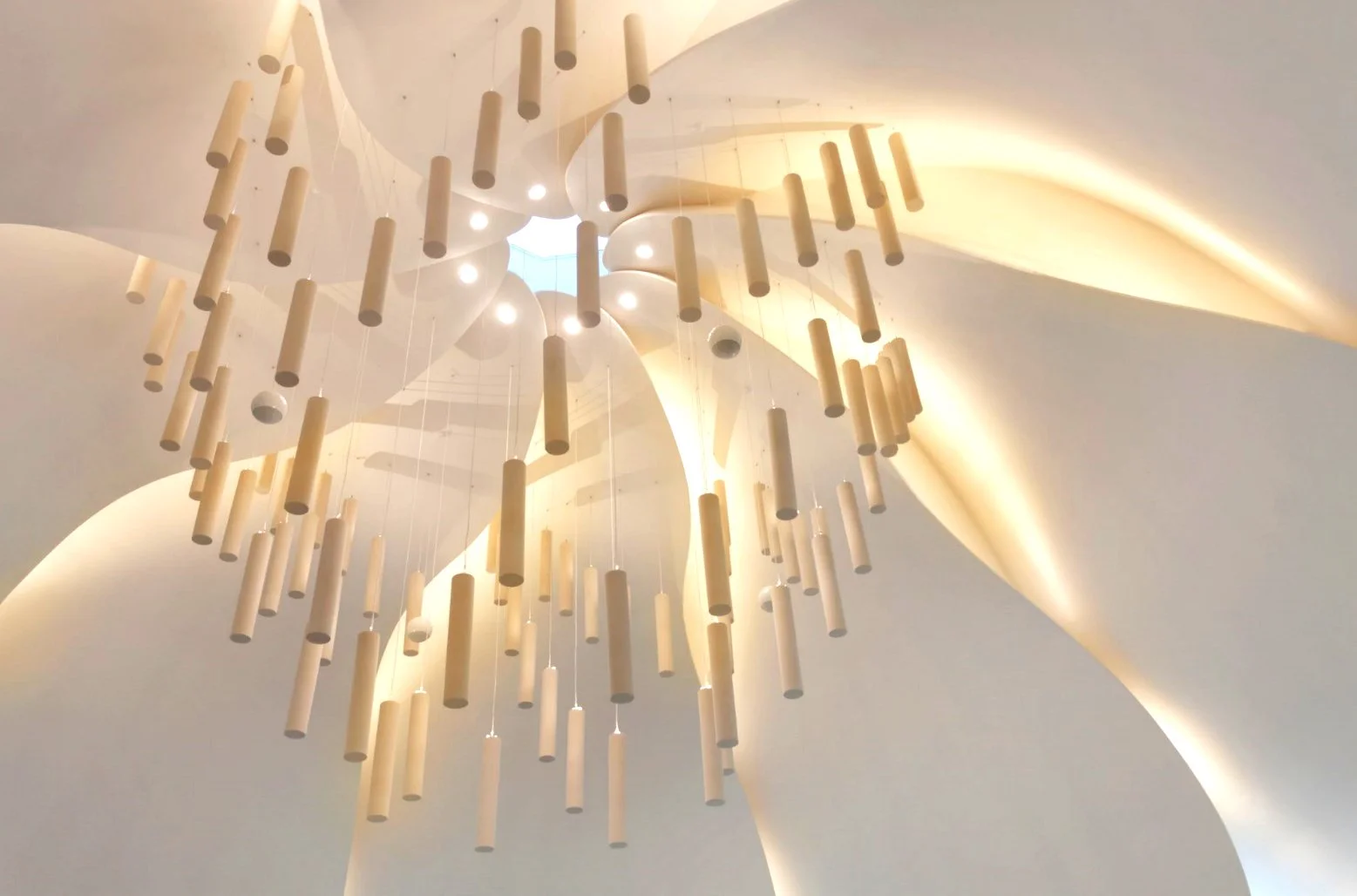

Round Cylindrical Baffles
Flat Panels
Wave Panels/Clouds/Baffles
Size & shape Options
Wave or Flat Panels:
Max Grid Size: 4' x 8' (1220mm x 2400mm)
Round Baffles:
Thickness: 4" or 6"
Length Options: 12" 18", 24", 36", 48"
