ECHOTROL™ ACOUSTIC Clouds

ECHOTROL™ ACOUSTIC CLOUDS offer excellent sound absorption characteristics in a number of cost-effective architectural finishes. These attributes enable them to be utilized in many interior environments requiring sound quality improvements. Each cloud consists of rigid high density and formaldehyde-free acoustical fiberglass. Finishes include fire-rated acoustical fabrics in a variety of colors and textures.

The flexibility of our ECHOTROL™ ACOUSTIC CLOUDS allows them to be used in many interior areas requiring acoustical upgrading. The clouds may be installed in a variety of ways. Clouds varying in colours, shapes and sizes may also be combined for an interesting abstract appearance.

Echotrol™ Acoustic Clouds: The Future of Sound Control

In the evolving world of interior design, acoustic solutions play a pivotal role in enhancing the ambiance of a space. Echotrol™ Acoustic Clouds are at the forefront of this evolution, offering both sound control and visual appeal.

Key Features of Echotrol™ Acoustic Clouds:

  • Exceptional Sound Absorption: Made from rigid, high-density, and formaldehyde-free acoustical fiberglass, our clouds ensure an optimal sound environment.

  • Modern Aesthetics: Available in fire-rated acoustical fabrics of various colors and textures, these clouds add a touch of elegance to any interior.

  • Versatile Installation: Our acoustic clouds can be customized in diverse shapes, sizes, and colors, allowing for unique and creative installations that complement your space.

  • Safety Assured: Meeting multiple flammability standards, our clouds prioritize safety without compromising on design or functionality.

Echotrol™ Acoustic Clouds are not just about sound control; they represent a harmonious blend of innovation, design, and acoustic engineering. Transform your interiors with a solution that's both functional and aesthetically pleasing.

  • Ceiling

    Different mounting hardware will be used depending on the installation location and ceiling type. Clouds may be directly mounted to the ceiling on with eye screws, or suspended using a cable system. Contact us to discuss your specific project.

  • Education Sector: Libraries, Learning Commons, Auditoriums, Hallways, Corridors, Music Rooms, Cafeterias, Etc.

    Recreation Sector: Pools, Fitness Studios, Curling Rinks, Etc.

    Office/Workplace Sector: Offices, Lunch Rooms, Open Office Areas, Etc.

    Entertainment Sector: Theatres, Movie Theatres, Recording Studios, Performance Spaces, Community Halls, Bars & Restaurants, Etc.

    Places of Worship: Churches, Mosques, Retreat Centres, Synagogues, Fellowship Halls, Etc.

  • In construction specifications, the content is systematically organized into divisions that detail requirements for various construction components. Division 9 is specifically tailored to "Finishes." Within this division, specifications related to different finishing materials and methods, such as painting, plastering, and flooring, are presented.

    Acoustic clouds, essential for overhead sound control and aesthetics, would typically be categorized under Division 9. More specifically, they might be housed under a subsection dedicated to "Acoustical Treatments" or "Acoustical Overhead Treatments." The precise section number or title might vary based on the specific format or version of the specification being utilized, but it's common to find them under a designation like "09 84 00 - Acoustical Cloud Treatments" or something similar.

    Within this section or subsection, detailed specifications for the acoustic clouds would be provided, encompassing material descriptions, installation procedures, performance criteria, and other relevant specifics.

    If you're perusing a particular set of construction specifications or a unique format, it's always recommended to consult the table of contents or index to locate the exact section where acoustic clouds are described.

DOWNLOADS:

Echotrol Acoustic Clouds Brochure
Specification Cover Picture

Brochure

Specification

Broken Glass shaped acoustic clouds - Red Deer Polytechnic - Red Deer, Alberta
Summit Kids Daycare Echotrol Acoustic Clouds - Calgary, Alberta
Echotrol Acoustic Clouds and panels in Langdon School

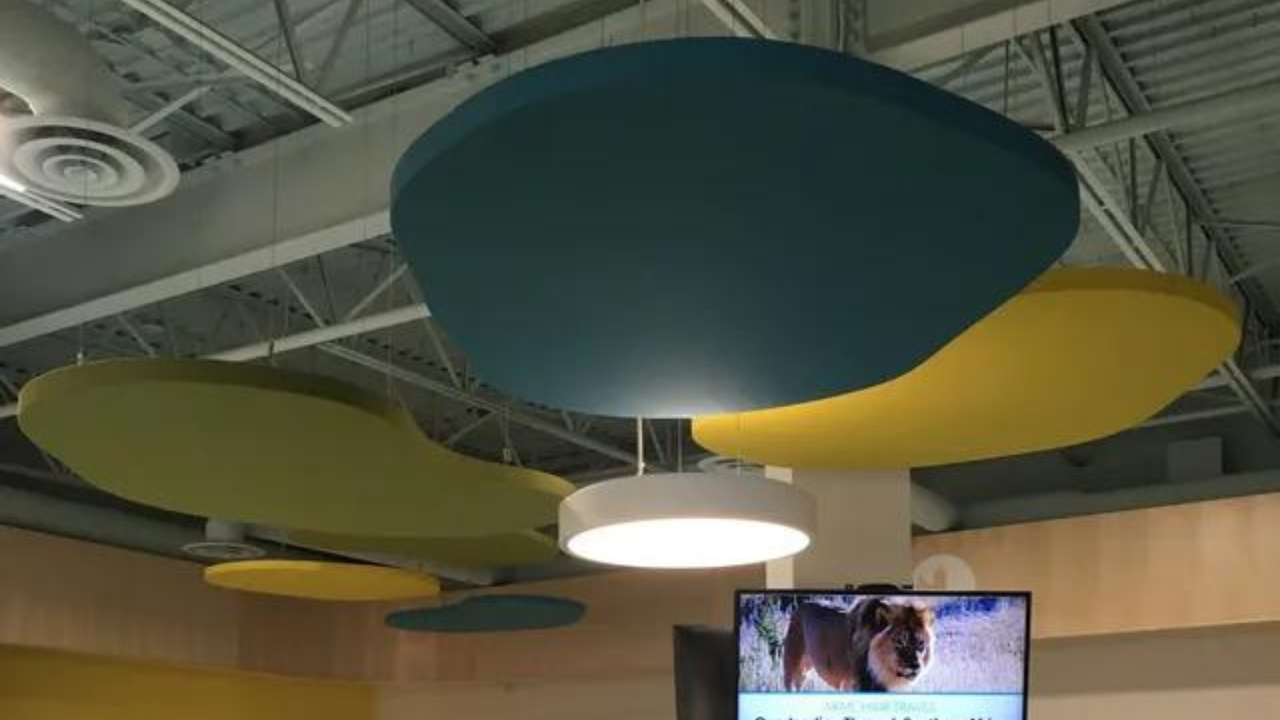

Jellybean shaped acoustic clouds at St. Albert Library - St. Albert, Alberta
Echotrol Acoustic Clouds at St. Kateri School - Grande Prairie, Alberta
Acoustic Clouds at Millennium Place Pool - Sherwood Park, Alberta
Acoustic Cloud Installation at Kinsmen Pool - Edmonton, Alberta
Broken Glass shaped acoustic clouds - Red Deer Polytechnic - Red Deer, Alberta
Jellybean shaped acoustic clouds at St. Albert Library - St. Albert, Alberta
Acoustic Clouds in a school Classroom
Echotrol Felt Wrapped Cloud at Kasian Architecture - Edmonton, Alberta

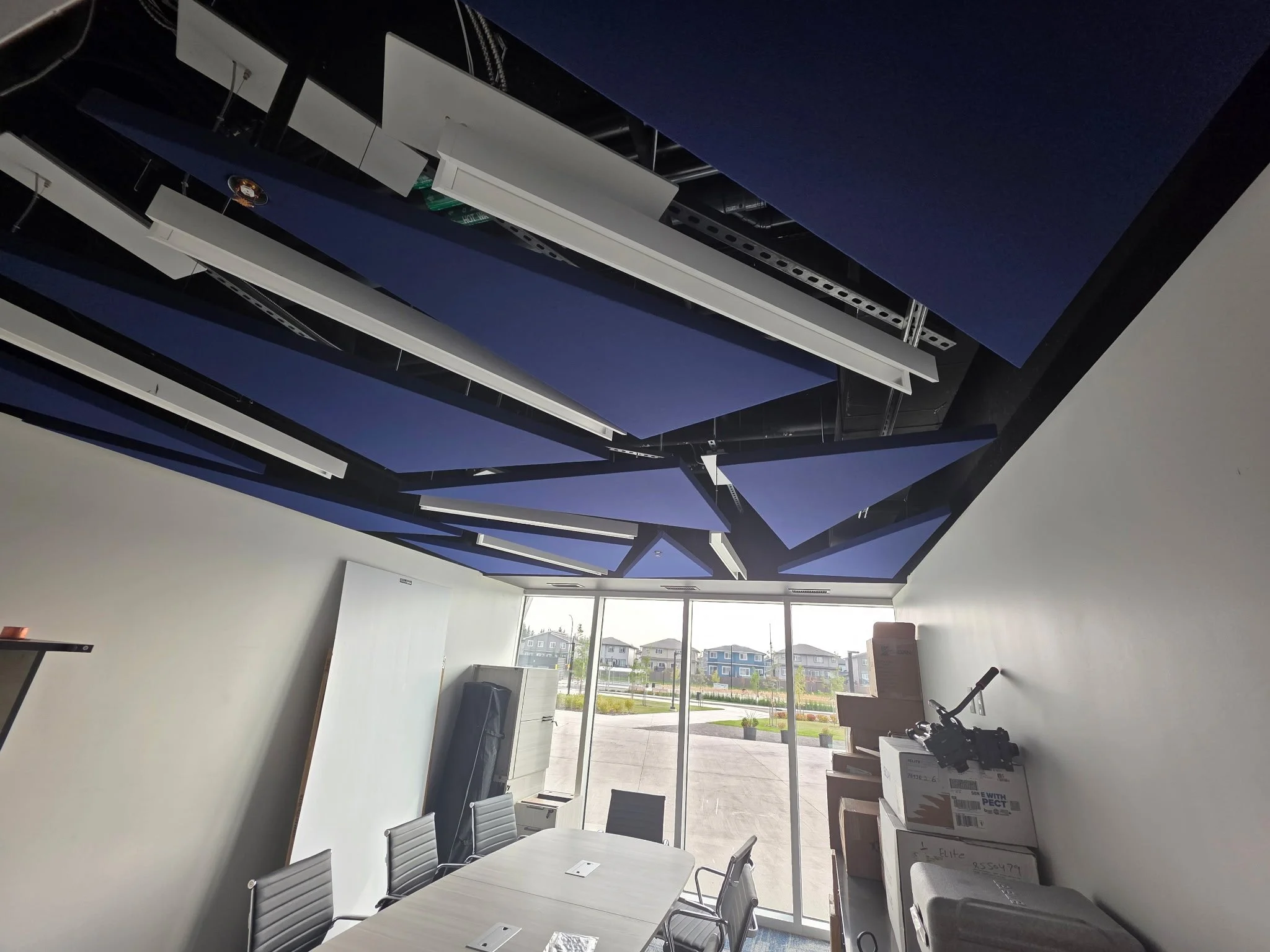

Echotrol Acoustic Clouds at Silent Ice Arena - Nisku, Alberta
Echotrol Acoustic Clouds at FACS - Edmonton, Alberta

Acoustical Performance

NRC RATING

NOISE REDUCTION COEFFICENT

Noise Reduction Coefficient (NRC) is calculated by averaging the sound absorption coefficients of a material at four frequencies (250 Hz, 500 Hz, 1000 Hz, and 2000 Hz) as measured in a reverberation room according to ASTM C423 standards.

Echotrol NRC Data - Panels 2
Frequency (Hz)


125
 250
 500
 1000
 2000
 4000
 NRC
50mm
 ASTM*
 		0.29
 0.98
 1.09
 0.96
 1.01
 0.97
 1.00
50mm Industry** 0.58
 1.96 2.18 1.92
 2.02
 1.94
 2.02
*ASTM Reporting Protocol Reports
**Common Industry Reporting Protocol That Adds the Absorption From Both Sides of the Baffle Together

fire rating/flammability

Flammability

ASTM E-84

Class 1 or A

NFPA-701

Passes

Boston Fire Code BFD 1X-1

Passes

State of Ca. CS-191-53

Passes

GSA-PBS

Passes

UL Test #214

Passes

CAN / ULC - S102

Passes

Fire Rating

Size & shape Options

  • Clouds are available in configurations within a 4’x8’ grid. (1220mm x 2400mm)

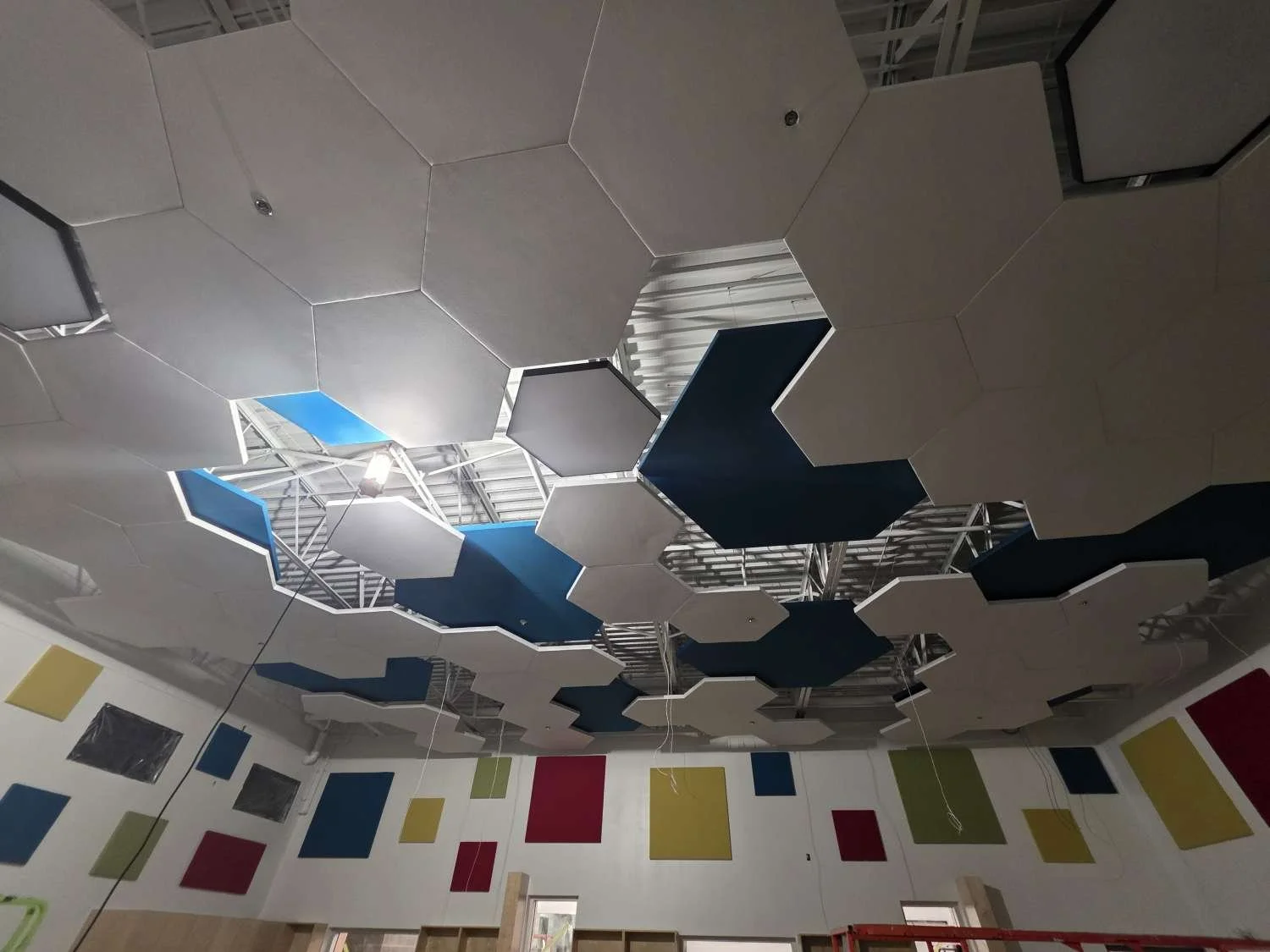

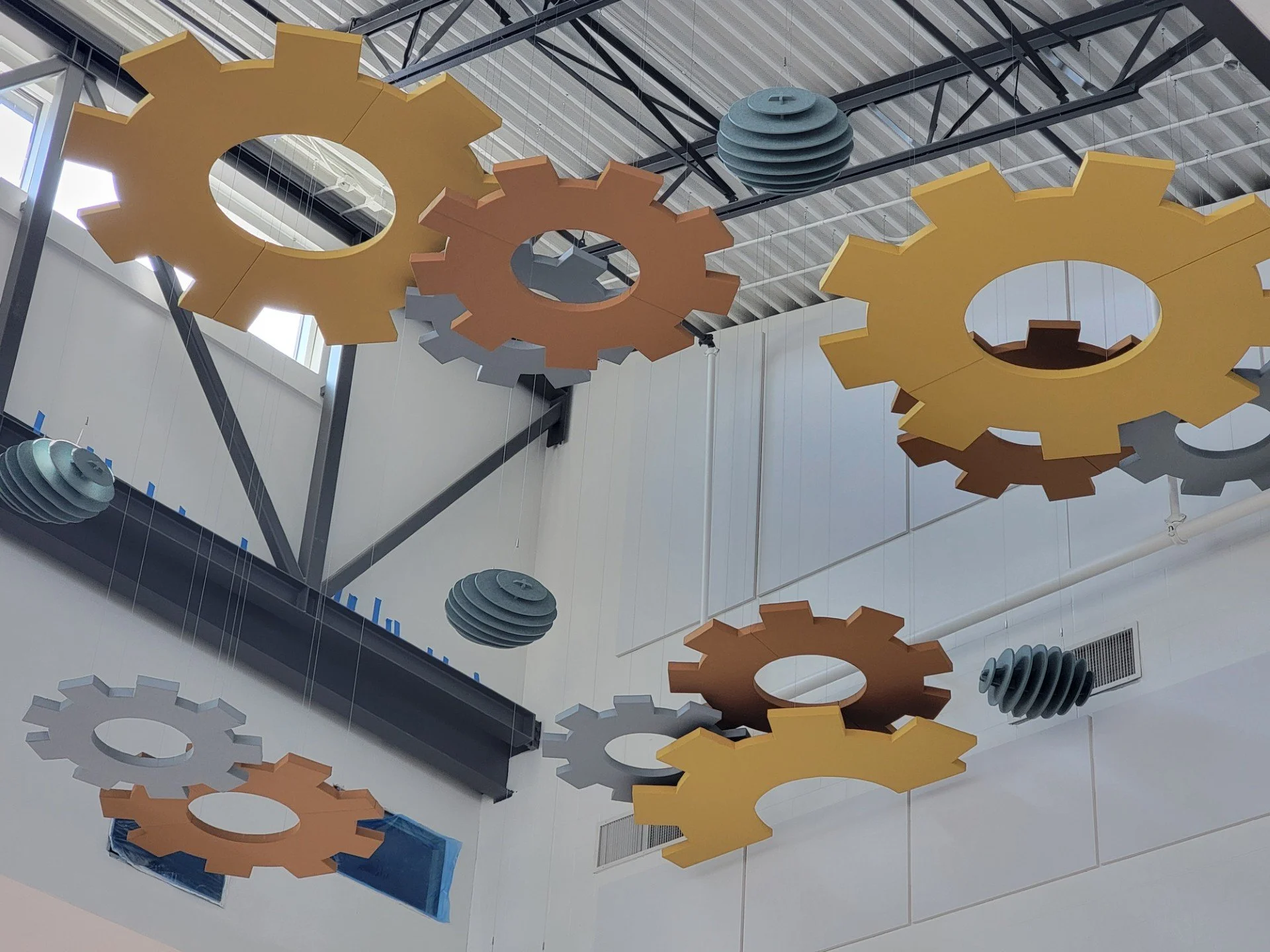

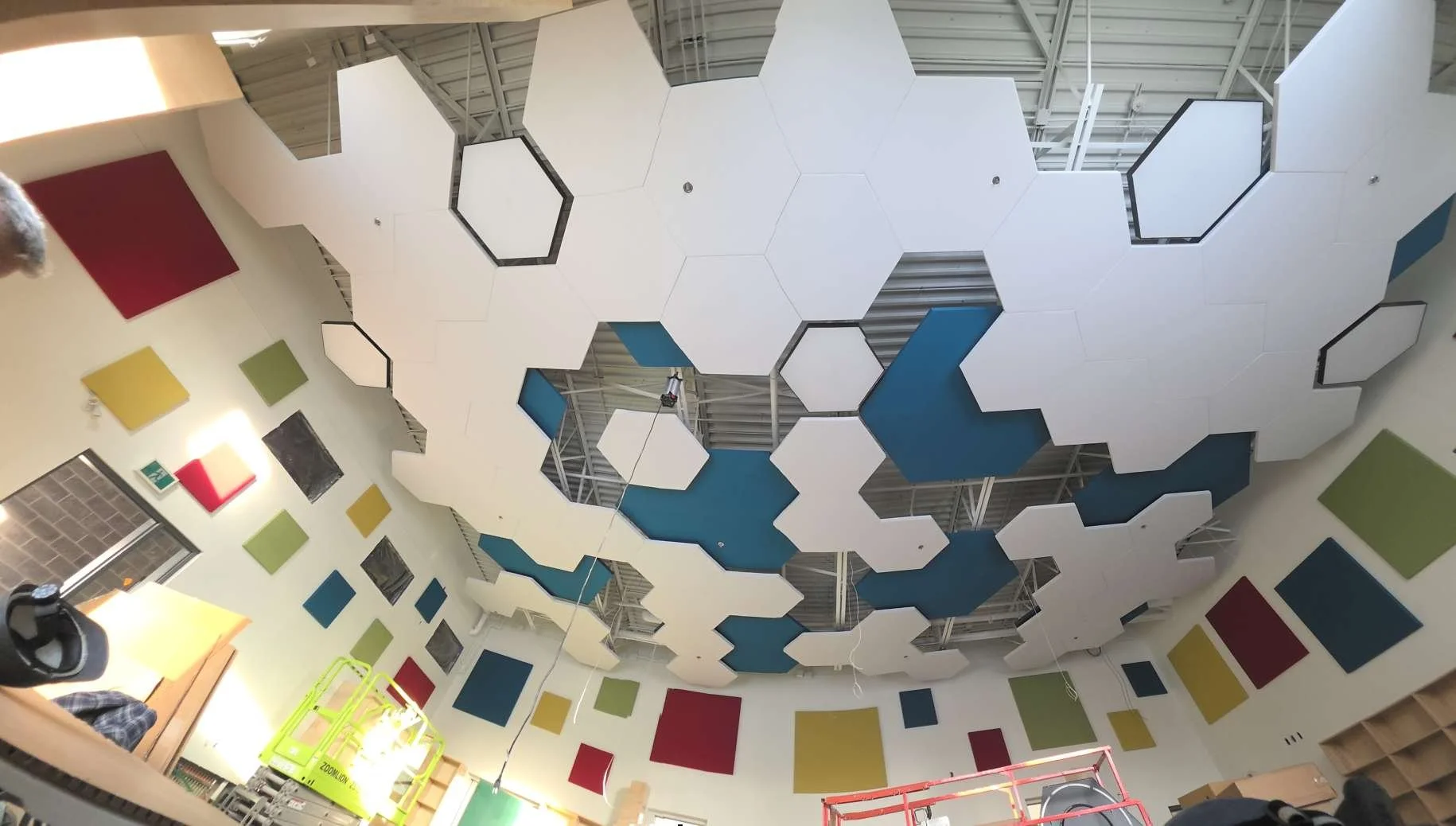

  • Echotrol™ SHAPES options are also available. This includes but is not limited to triangles, trapezoids, circles, and hexagons.
